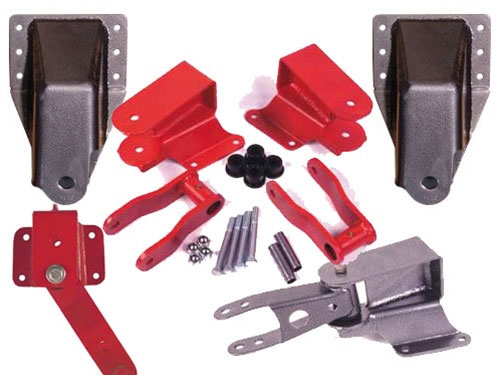

Hanger Front Of Rear Leafspring. HD ONLY Weldon or Bolton. Front &; rear Leafspring Hangers are The Way to Go!; lifts your truck without changing the ride besides Leafsprings are expensive.

• Size - 4 in.
• Model - Chevrolet C3500.
• Year - 2000.
• Technical specification - 2000-2006 Chevrolet K25HDKC35HDTahoeYukonBlazerSuburban.
• Item Weight - 95 lbs.

• Place your jack under the pumpkin and rais errear end to relieve pressure on the shocks. Remove shocks from lower mounts and lower jack to relieve pressure on the springs.
• Remove front spring bolts and lower axle.
• The stock hanger using 2 washers one outer and one inner per bolt. Torque all bolts to 100-115 lbs. And re tighten after driving.
• If necessary use a drill so bolts will fit without damage to threads.
• Install the new hanger in existing holes. Torque all bolts to 100-115 lbs.
• Raise jack up until the front of the leaf spring is in the new hanger.
• Reinstall front spring bolts and shock absorbers. Note: you will need to re-torque all bolts after driving 100 miles.

• Raise The Rear End With A Jack To Relieve Tension On Shocks. Remove Shocks From Lower Mounts And Lower Jack To Relieve Pressure On Springs.
• Remove Front And Rear Spring Bolts And U-Bolts To Free Spring.
• Install New Lowered Leaf Springs. Use Factory Hardware And Bolt Together In Reveres Order. Make Sure Spring Bolt Lines Up With Axle.
• You Will Need To Re-Torque All Bolts After 100 Miles.
