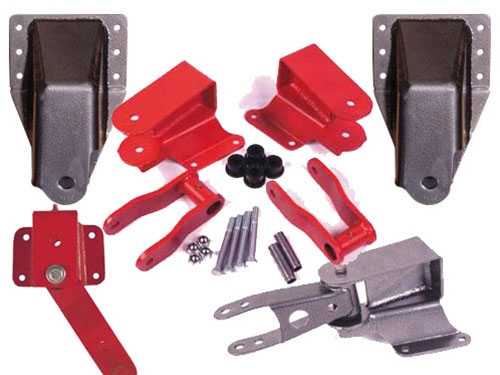

Hanger Front&Rear Of Rear Leafspring. Weldon or Bolton. Front &; rear Leafspring Hangers are The Way to Go!; lifts your truck without changing the ride besides Leafsprings are expensive.

• Size - 6 in.
• Model - Chevrolet C10.
• Year - 1973.
• Technical specification - 1973-1980 Chevrolet K10K20.
• Item Weight - 100 lbs.

• Place your jack under the pumpkin and rais errear end to relieve pressure on the shocks. Remove shocks from lower mounts and lower jack to relieve pressure on the springs.
• Remove front spring bolts and lower axle.
• The stock hanger using 2 washers one outer and one inner per bolt. Torque all bolts to 100-115 lbs. And re tighten after driving.
• If necessary use a drill so bolts will fit without damage to threads.
• Install the new hanger in existing holes. Torque all bolts to 100-115 lbs.
• Raise jack up until the front of the leaf spring is in the new hanger.
• Reinstall front spring bolts and shock absorbers. Note: you will need to re-torque all bolts after driving 100 miles.

• Raise the rear end with a jack to relieve tension on shocks. Remove shocks from lower mounts and lower jack to relieve pressure on springs.
• Remove front and rear spring bolts and u-bolts to free spring.
• Install new lowered leaf springs. Use factory hardware and bolt together in reveres order. Make sure spring bolt lines up with axle.
• You will need to re-torque all bolts after 100 miles.
